Osburn Matrix Fireplace Insert OB02028
Alternative Views:
:
$
3,499.00
Product Code:
OSBURN-MATRIX-INSERT-OB02028
Free Blower:
Blower is included!
Free Shipping:
Free Shipping - Lift gate & a delivery appointment included!!! (order total over $938)!
Faceplate:
Optional - Click here to select
AC01321 44"x6" Bottom faceplate backing plate [Add $80.00]
AC01322 29"x44" Faceplate backing plate kit [Add $170.00]
AC01332 29"x50" Faceplate backing plate kit [Add $250.00]
AC01333 50"x6" Bottom faceplate backing plate [Add $90.00]
Venting:
Optional - Click here to select
AC01298 Fresh air kit - oval, 5" diameter [Add $90.00]
Fire/Safety Screen:
Optional - Click here to select
AC01315 Rigid Fire screen [Add $180.00]
Accessories:
Optional - Click here to select
AC01323 Projection kit for insert, 2" or 4" [Add $120.00]
Venting Accessories:
Optional - Click here to select
AC01214 Offset Liner Adaptor [Add $250.00]
AC01349 5'' Fresh Air Intake Register with Airtight Damper [Add $200.00]
Insulation kit:
Optional - Click here to select
6IN BY 20FT .25 INSULATION KIT (Glue, Insulation, Wire Mesh Net) [Add $249.00]
6IN BY 20FT .5 INSULATION KIT (Glue, Insulation, Wire Mesh Net) [Add $249.00]
$125 Off Any Chimney Liner Kit

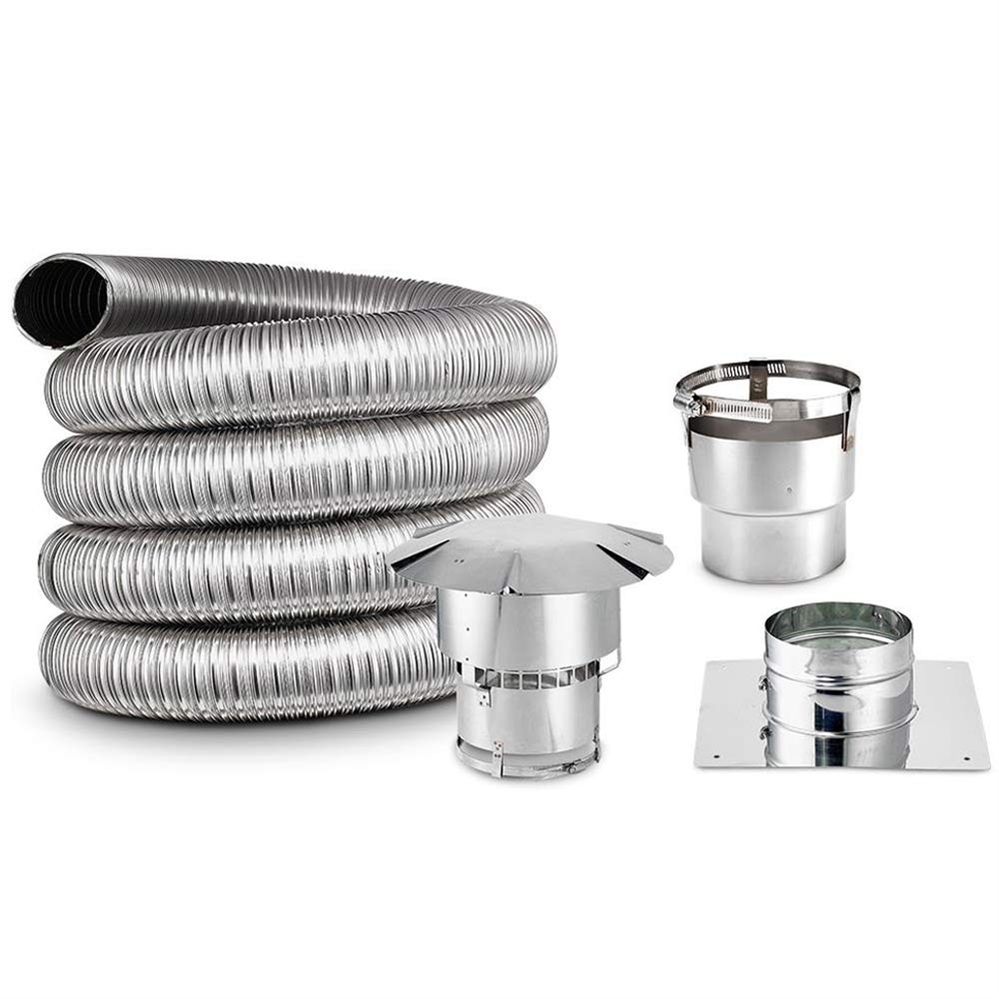

Chimney Liner Kit:
Optional - Click here to select
6", 15FT, ROUND, SINGLE PLY LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $290.00]
6", 20FT, ROUND, SINGLE PLY LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $320.00]
6", 25FT, ROUND, SINGLE PLY LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $360.00]
6", 30FT, ROUND, SINGLE PLY LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $415.00]
6", 35FT, ROUND, SINGLE PLY LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $470.00]
6", 20FT, ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $470.00]
6", 25FT, ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $530.00]
6", 30FT, ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $640.00]
6", 35FT, ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $725.00]
4"x8", 20FT, OVAL, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $520.00]
4"x8", 25FT, OVAL, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $580.00]
4"x8", 30FT, OVAL, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $640.00]
4"x8", 35FT, OVAL, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $725.00]
6", 20FT, ROUND, SINGLE PLY LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $320.00]
6", 25FT, ROUND, SINGLE PLY LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $360.00]
6", 30FT, ROUND, SINGLE PLY LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $415.00]
6", 35FT, ROUND, SINGLE PLY LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $470.00]
6", 20FT, ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $470.00]
6", 25FT, ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $530.00]
6", 30FT, ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $590.00]
6", 35FT, ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $675.00]
4"x8", 20FT, OVAL, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $520.00]
4"x8", 25FT, OVAL, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $580.00]
4"x8", 30FT, OVAL, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $640.00]
4"x8", 35FT, OVAL, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $725.00]
6", 20FT, 4FT OVAL+16 FT ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $520.00]
6", 25FT, 4FT OVAL+21 FT ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $580.00]
6", 30FT, 4FT OVAL+26 FT ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $640.00]
6", 35FT, 4FT OVAL+31 FT ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, STOVE CONNECTOR) [Add $725.00]
6", 20FT, 4FT OVAL+16 FT ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $520.00]
6", 25FT, 4FT OVAL+21 FT ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $580.00]
6", 30FT, 4FT OVAL+26 FT ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $640.00]
6", 35FT, 4FT OVAL+31 FT ROUND, SMOOTH WALL LINER (+TOP PLATE, CHIMNEY CAP, INSERT CONNECTOR) [Add $725.00]
Qty:
Specifications
Technical Specs
Extended Information
750-2100 sq.ft., 20" log, 75,000 BTUs, 77.2% efficiency, 2.4 cu.ft fire box, 484 lbs
Osburn
Matrix Fireplace Insert OB02028
PRODUCT FEATURES
The model number for the Osburn Matrix Fireplace Insert is OB02028.
Recommended heating area (sq.ft.) : 750 - 2,100
Steel thickness – top : 5/16"
Optimum efficiency : 77.2 %
Average particulate emissions rate : 3.9 g/h
Baffle type : High heat-resistant C-cast
Maximum burn time : 8 h
High-efficiency EPA certified appliance : High-efficiency EPA certified appliance
Automatic or manual adjustment of combustion air supply
May qualify for some
government incentives
.
Glass air-wash system
Tested and listed as per applicable standards : By an accredited laboratory (CAN/USA)
Blower Included
Premium quality convection blower included (CFM) : 90
Adjustable Threaded Legs
Firebox lined with refractory bricks for better heat distribution
Stainless-steel secondary-air system improving gas combustion
Osburn
Matrix Fireplace Insert OB02028
PRODUCT SPECIFICATIONS
Firebox – dimension (Depth) 16 3/4"
Firebox – dimension (Width) 21"
Firebox – dimension (Height) 11 7/8"
Maximum log length 20"
Door opening dimension (Width) 17 1/2"
Door opening – dimension (Height) 8 3/4"
Door type Single, glass with cast iron frame
Glass surface – dimensions (Width X Height) 19 5/8" x 11 7/8"
Steel thickness – body 3/16"
Weight 484 lb (220 kg)
Firebox volume (cu. ft.) 2.4
Ultra-quiet blower - 90 CFM, manual, automatic and off rocker switch

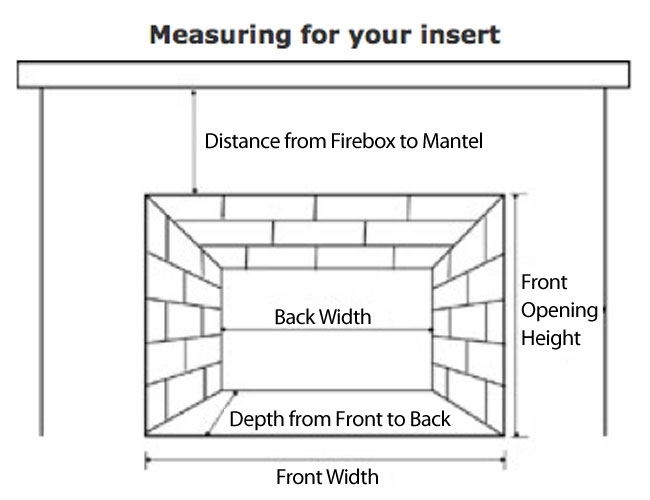

Fireplace opening – minimum (Width) 28 7/8"
Fireplace opening – minimum (Height) 23 5/16"
Fireplace opening – minimum (Depth) 19 5/8"
Glass type Ceramic glass

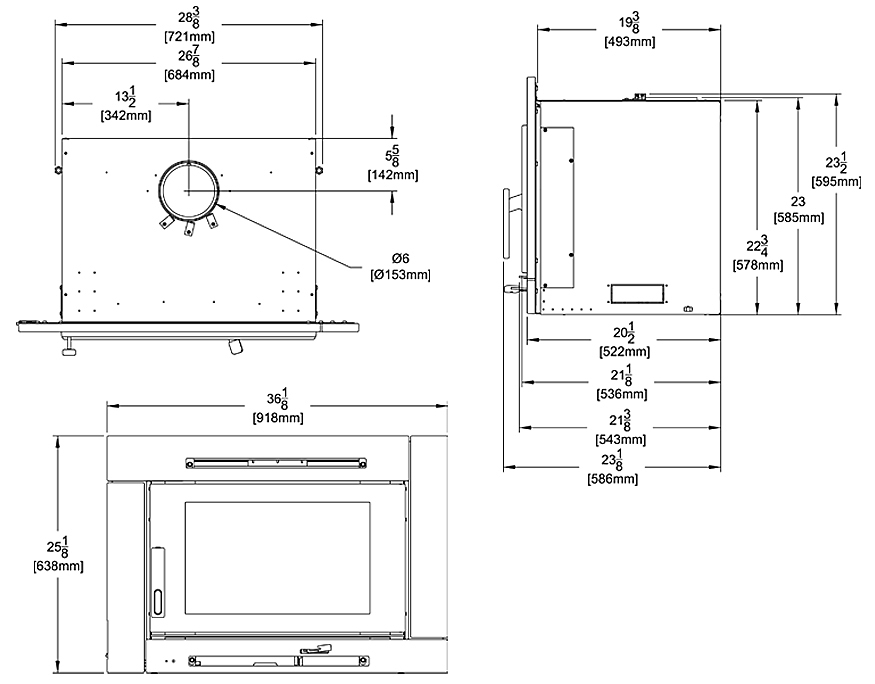

Overall dimension (Depth) 23 1/8"
Overall dimension (Height) 25 1/8"
Overall dimension (Width) 36 1/8"
Centre line of flue outlet to the back 5 5/8"
Centre line of flue outlet to the side 13 1/2"
Canadian standard (emissions) CSA B415.1-10
USA standard (emissions) EPA/ASTM WK47329
Canadian standard (safety) ULC S628
USA standard (safety) UL 1482, UL 737
Overall heat output rate (max.) 28,600 BTU/h (8.38 kW)
Overall heat output rate (min. to max.) 14,800 BTU/h (4.34 kW)
Average CO 89.4 g/h
Maximum heat output (dry cordwood) 75,000 BTU/h (22.0 kW)
Fuel type Dry cordwood
Minimum chimney height (feet) 12
Log positioning Over width, left to right, east west loader
Recommended heating area (sq.ft.) 500 - 2,100
Steel thickness – top 5/16"
Optimum efficiency 77%
Average particulate emissions rate 1.54 g/h
Recommended chimney diameter 6"
Baffle type High heat-resistant C-cast
Maximum burn time 8 h
Flue outlet diameter 6"
Warranty Limited lifetime
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Minimum clearances to combustibles *
(Data expressed in inches. 1 inch = 25.4 mm)
Combustible side mantle to unit
9"
Combustible side wall to unit
16"
Combustible top mantle to unit
27"
Minimum floor protection in front of unit
Canada: 18", USA: 16"
Product Details
Osburn
Matrix Fireplace Insert OB02028
Osburn Matrix Wood Fireplace Insert Manual
The Osburn Matrix insert defines the new standards for contemporary look and performance. The Osburn Matrix Insert looks like a fireplace, but has all the advantages of an insert. The Osburn Matrix has face plate and blower assembly that was developed to allow a flush finish with the masonry fireplace. Cast iron was selected as the material of choice for this clean and modern unit. You can install an Osburn Matrix into larger openings by using optional sheet metal backing plate. This Osburn Matrix Insert will surely become the focal point of the room.
